Telesis Wiki in English | Resources / FAEDipSwitch

The following table shows dipswitches position according to CAU member numbers.

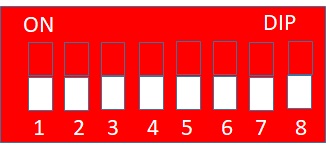

CAU member no	Dipswitch positions	Port range	Http port	IP address
1		30250-30499	30252	10.0.0.1
2		30500-30749	30502	10.0.0.2
3		30750-30999	30752	10.0.0.3
4		31000-31249	31002	10.0.0.4
5		31250-31499	31252	10.0.0.5
6		31500-31749	31502	10.0.0.6
7		31750-31999	31752	10.0.0.7
8		32000-32249	32002	10.0.0.8
9		32250-32499	32252	10.0.0.9
10		32500-32749	32502	10.0.0.10
11		32750-32999	32752	10.0.0.11
12		33000-33249	33002	10.0.0.12
13		33250-33499	33252	10.0.0.13
14		33500-33749	33502	10.0.0.14
15		33750-33999	33752	10.0.0.15
16		34000-34249	34002	10.0.0.16
17		34250-34499	34252	10.0.0.17
18		34500-34749	34502	10.0.0.18
19		34750-34999	34752	10.0.0.19
20		35000-35249	35002	10.0.0.20
21		35250-35449	35252	10.0.0.21
22		35500-35749	35502	10.0.0.22
23		35750-35999	35752	10.0.0.23
24		36000-36249	36002	10.0.0.24
25		36250-36499	36252	10.0.0.25
26		36500-36749	36502	10.0.0.26
27		36750-36999	36752	10.0.0.27
28		37000-37249	37002	10.0.0.28
29		37250-37499	37252	10.0.0.29
30		37500-37749	37502	10.0.0.30
31		37750-37999	37752	10.0.0.31
32		38000-38249	38002	10.0.0.32
33		38250-38499	38252	10.0.0.33
34		38500-38749	38502	10.0.0.34
35		38750-38999	38752	10.0.0.35
36		39000-39249	39002	10.0.0.36
37		39250-39499	39252	10.0.0.37
38		39500-39749	39502	10.0.0.38
39		39750-39999	39752	10.0.0.39
40		40000-40249	40002	10.0.0.40
41		40250-40499	40252	10.0.0.41
42		40500-40749	40502	10.0.0.42
43		40750-40999	40752	10.0.0.43
44		41000-41249	41002	10.0.0.44
45		41250-41499	41252	10.0.0.45
46		41500-41749	41502	10.0.0.46
47		41750-41999	41752	10.0.0.47
48		42000-42249	42002	10.0.0.48
49		42250-42499	42252	10.0.0.49
50		42500-42749	42502	10.0.0.50
51		42750-42999	42752	10.0.0.51
52		43000-43249	43002	10.0.0.52
53		43250-43449	43252	10.0.0.53
54		43500-43749	43502	10.0.0.54
55		43750-43999	43752	10.0.0.55
56		44000-44249	44002	10.0.0.56
57		44250-44499	44252	10.0.0.57
58		44500-45749	44502	10.0.0.58
59		44750-44999	44752	10.0.0.59
60		45000-45249	45002	10.0.0.60
61		45250-45499	45252	10.0.0.61
62		45500-45749	45502	10.0.0.62
63		45750-45999	45752	10.0.0.63
64		46000-46249	46002	10.0.0.64
65		46250-46499	46252	10.0.0.65
66		46500-46749	46502	10.0.0.66
67		46750-46999	46752	10.0.0.67
68		47000-47249	47002	10.0.0.68
69		47250-47499	47252	10.0.0.69
70		47500-47749	47502	10.0.0.70
71		47750-47999	47752	10.0.0.71
72		48000-48249	48002	10.0.0.72
73		48250-48499	48252	10.0.0.73
74		48500-48749	48502	10.0.0.74
75		49000-49249	49002	10.0.0.75
76		49250-49499	49252	10.0.0.76
77		49250-49499	49252	10.0.0.77
78		49500-49749	49502	10.0.0.78
79		49750-49999	49752	10.0.0.79
80		50000-50249	50002	10.0.0.80
81		50250-50499	50252	10.0.0.81
82		50500-50749	50502	10.0.0.82
83		50750-50999	50752	10.0.0.83
84		51000-51249	51002	10.0.0.84
85		51250-51499	51252	10.0.0.85
86		51500-51749	51502	10.0.0.86
87		51750-51999	51752	10.0.0.87
88		52000-52249	52002	10.0.0.88
89		52250-52499	52252	10.0.0.89
90		52500-52749	52502	10.0.0.90
91		52750-52999	52752	10.0.0.91
92		53000-53249	53002	10.0.0.92
93		53250-53499	53252	10.0.0.93
94		53500-53749	53502	10.0.0.94
95		53750-53999	53752	10.0.0.95
96		54000-54249	54002	10.0.0.96
97		54250-54499	54252	10.0.0.97
98		54500-54749	54502	10.0.0.98
99		54750-54999	54752	10.0.0.99
100		55000-55249	55002	10.0.0.100
101		55250-55499	55252	10.0.0.101
102		55500-55749	55502	10.0.0.102
103		55750-55999	55752	10.0.0.103
104		56000-56249	56002	10.0.0.104
105		56250-56499	56252	10.0.0.105
106		56500-56749	56502	10.0.0.106
107		56750-56999	56752	10.0.0.107
108		57000-57249	57002	10.0.0.108
109		57250-57499	57252	10.0.0.109
110		57500-57749	57502	10.0.0.110
111		57750-57999	57752	10.0.0.111
112		58000-58249	58002	10.0.0.112
113		58250-58499	58252	10.0.0.113
114		58500-58749	58502	10.0.0.114
115		58750-58999	58752	10.0.0.115
116		59000-59249	59002	10.0.0.116
117		59250-59499	59252	10.0.0.117
118		59500-59749	59502	10.0.0.118
119		59750-59999	59752	10.0.0.119
120		60000-60249	60002	10.0.0.120
121		60250-60499	60252	10.0.0.121
122		60500-60749	60502	10.0.0.122
123		60750-60999	60752	10.0.0.123
124		61000-61249	61002	10.0.0.124
125		61250-61499	61252	10.0.0.125
126		61500-61749	61502	10.0.0.126
127		61750-61999	61752	10.0.0.127
