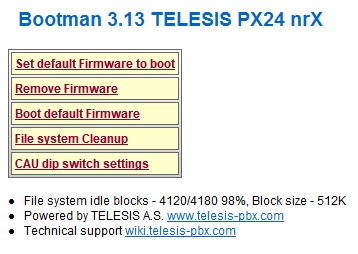

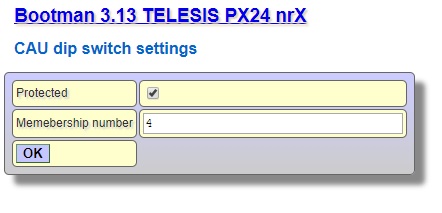

PX24NrXServiceModeHow to Start the PX24 nrX in Service mode? To activate the service mode, the PX24 nrX IP PBX is powered up with the spkr key pressed hold. Be aware that the spkr key must be hold pressed until keys and leds of the PX24 nrX blink fast. When keys and leds blink fast, the spkr key is released. The IP address of the system in service mode is the factory default address, which is 10.0.0.12 and the port address is 80. The web server of the system waits for a web browser connection within 2 minutes in service mode. If there will be no connection in this period, the system starts up in normal operation mode. So that, connect to the system within 2 minutes with using a web browser (Internet Explorer, Mozilla Firefox, etc.) to access Home Page of the service mode. During this 2 minute period. When is It Necessary? If Xymphony control program (that is, operational software or operational firmware) upgrade has to be done within a LAN (local area network) and if uploading the new firmware becomes difficult in normal operation mode, or Disc format to erase voice message, stored parameters, or Arrange member number of CAU and protection mode then starting the PX24N in service becomes necessary.  Set Default Firmware to boot Selects default Xymphony to boot the system. Remove Firmware Removes a selected Xymphony from the system` disk. Boot default Firmware Boots the Telesis system with the default Xymphony. File system cleanup Removes user data, which are mainly automatic conversation records, system messages etc. from memories. CAU Dip switch settings PX24 nrX is used to select the AU member number and protection position of the exchange. Select the Protected checkbox for protection mode, type the member number in the Membership number text box  |
