Stillink3200AttachingEmptyCoverPlatesForUnusedSlots

When the installation of all SDT modules is completed, attach empty cover plates for all unused slots.

Empty cover plate

Fix the cover to the subrack with tightening the screws at the top and bottom.

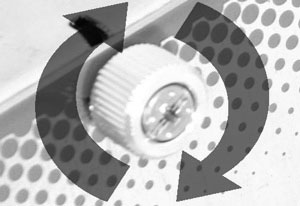

To tighten, turn the screw in clockwise until it looks firmed. Do not use an excessive power.

To loose, turn the screw in counter-clockwise.

Do not use a screwdriver to tighten the screws on the front panel.

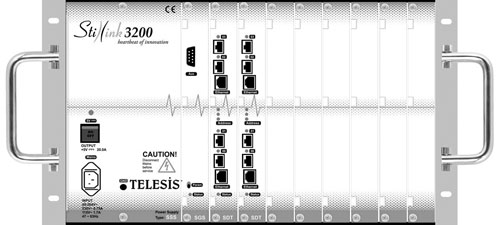

A sample Stillink 3200 with 8 E1 interfaces (i.e., 2 SDT modules) and empty cover plates fixed
