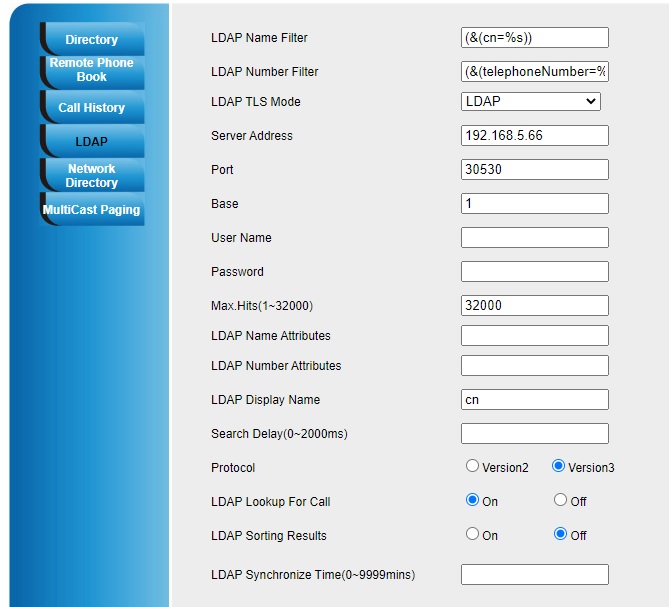

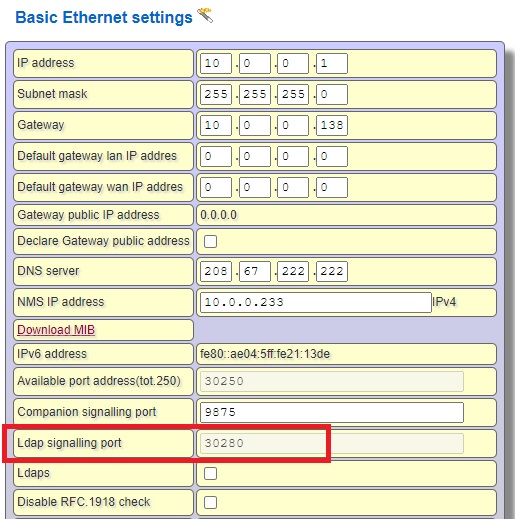

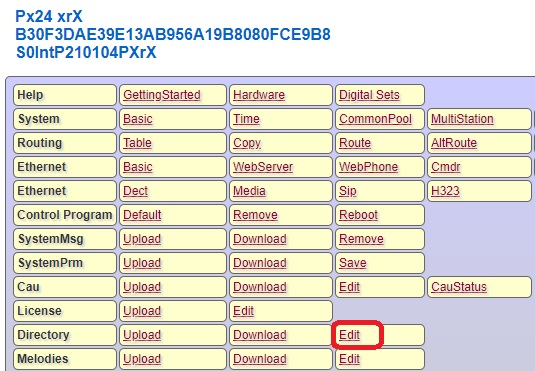

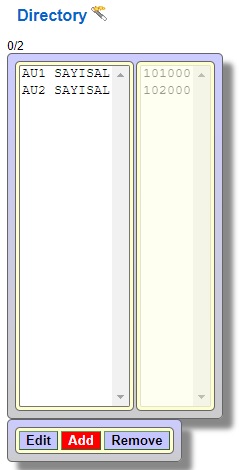

XymphonyLDAPRecords entered in the Directory table in Xymphony; In DTS / VTS model sets, if the calling subscriber number of the incoming call conflicts with the record in the Phonebook, the DTS / VTS set screen allows the name information to be displayed in addition to the caller number. When LDAP is activated in IP phones, it is possible to ask a number to the Directory in incoming or outgoing calls, and in case of conflict, name information is displayed. In order to use the LDAP feature; Settings to be made on the Xymphony side; Click the Directory / Edit button on the main page to enter the directory,  Click the Add button on the page that opens.  The first field is 16 characters long, letters a-z and A-Z and numbers 0-9 can be entered. The second field is 32 characters long, only numbers 0-9 can be entered. In order to download the Directory file to PC, it can be saved as a text file under the desired folder by right clicking the Directory / Download. The line entered in the text file should be separated into two fields by "/". You can create the Directory by adding it to the text file and the Guide created by clicking Guide / Download can be uploaded to Xymphony. When the directory is loaded, depending on the length of the records in it, the Directory option may not be seen on the central page for a while. In the CAU architecture, the Directory is common to every AU. For this reason, you can enter the ip address of any AU as the server address in the LDAP settings of the ip phone, and you can see the LDAP signaling port number of the corresponding AU on the Ethernet / Basic page.  Settings to be made on the Sip phone side; When a connection is made to the IP set via web interface, in Directory / LDAP page;
 |
