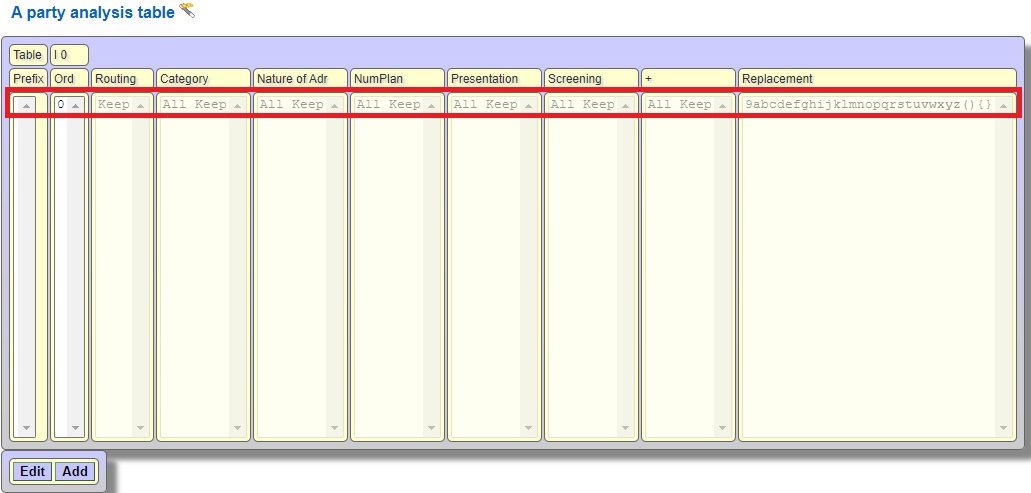

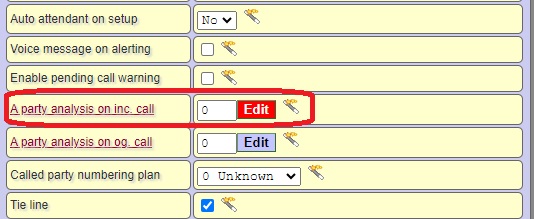

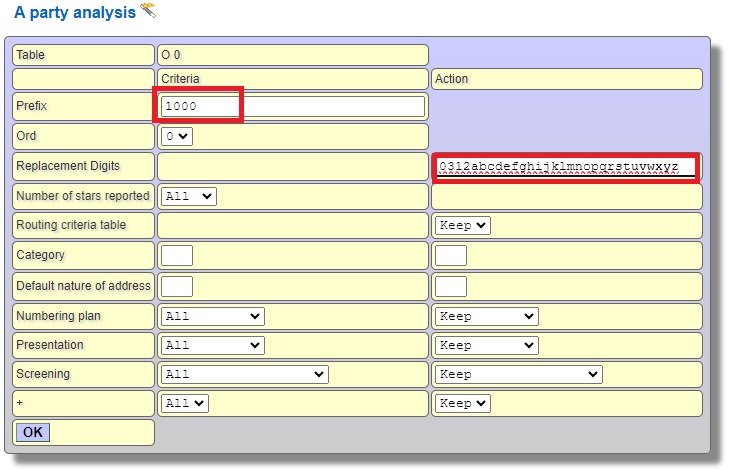

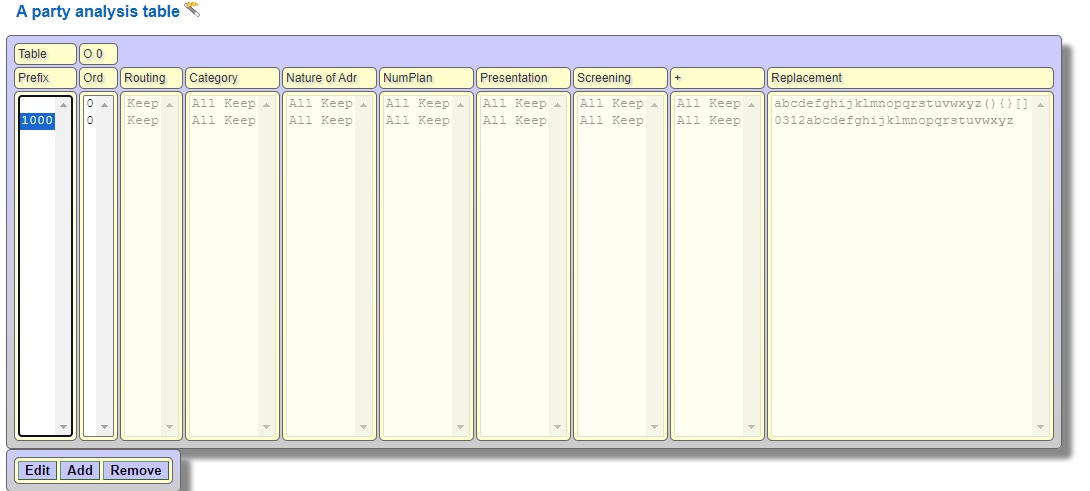

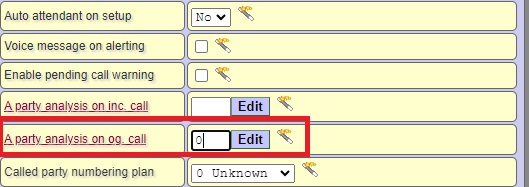

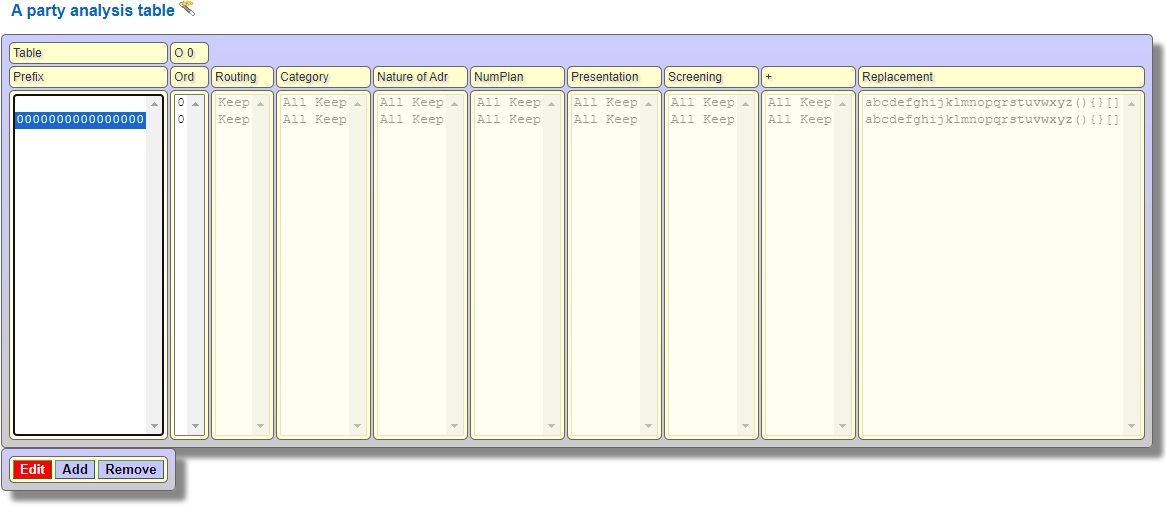

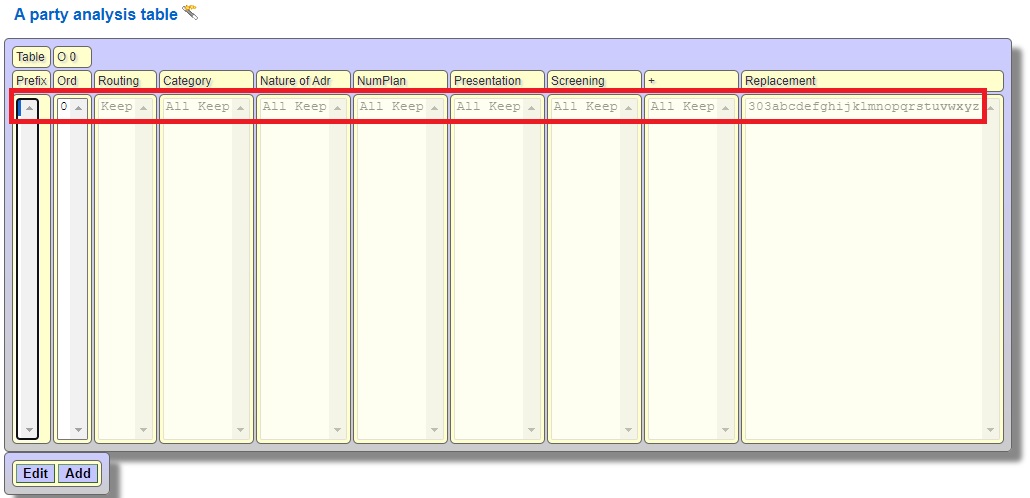

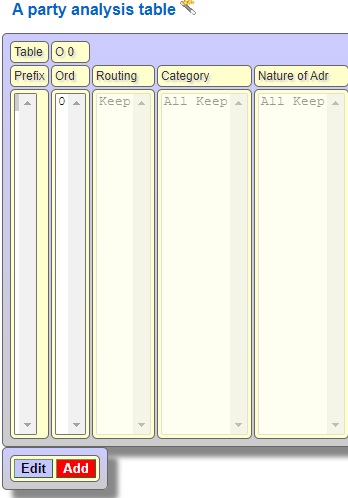

XymphonyProgramming-A-PartyAnalysisChanging the calling id number and analyzing the calling id number in Xymphony is done with the A-party table. Xymphony supports 127 different A party analysis tables for incoming calls and 127 for outgoing calls. A-Party Outgoing When the exchange subscriber use trunk for outgoing call and to change the calling subscriber number, use A party analysis on outgoing call from common properties of trunk. Use a table number for A party analysis on og. call  Press Edit button  Assume that to add 0312 prefix when subscriber number 1000 makes a call, Click add button  Select prefix 0000... and click Edit button  Write 1000 in Prefix and add 0312 infront of replacement digits  When subscriber 1000 use this trunk, Xymphony sends caller id number 03121000 from the trunk  If a subscriber other than subscriber number 1000 calls, Xymphony uses the top line and sends the original caller id number. Assume that DID numbers starts from 3031000 to 3031999 and if subscriber numbers starts from 1000 to 1999, use exception row and add 303 in front of abcd... in replacement digits  A-Party Incoming To change the calling numbers from the trunk use A party analysis on incoming call from common properties of trunk  For example, to add 9 of the calling numbers  |
