XymphonyProgramming-AddingSIPTrunks

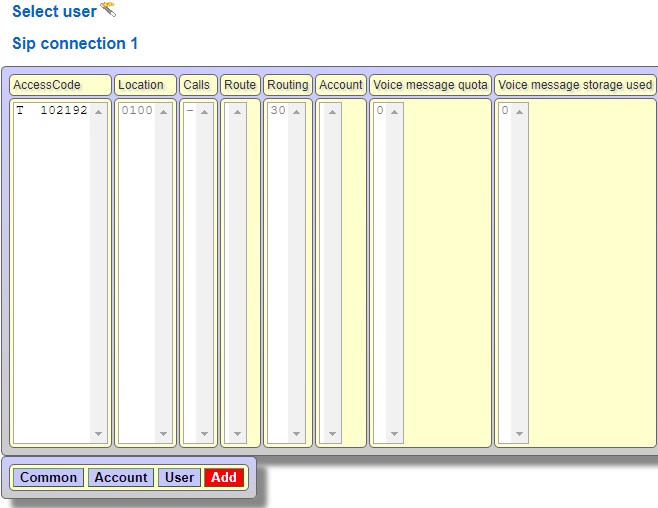

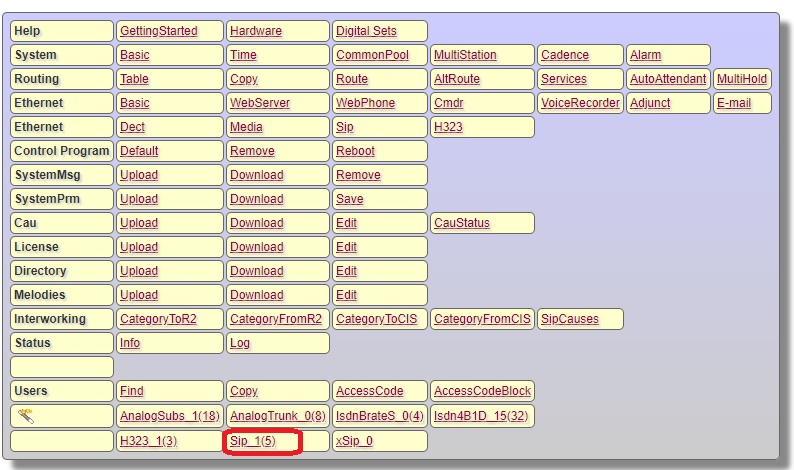

 The system will automatically identify a sip user.

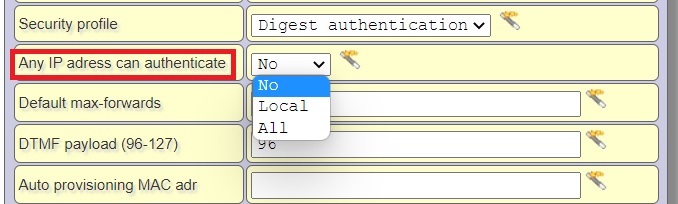

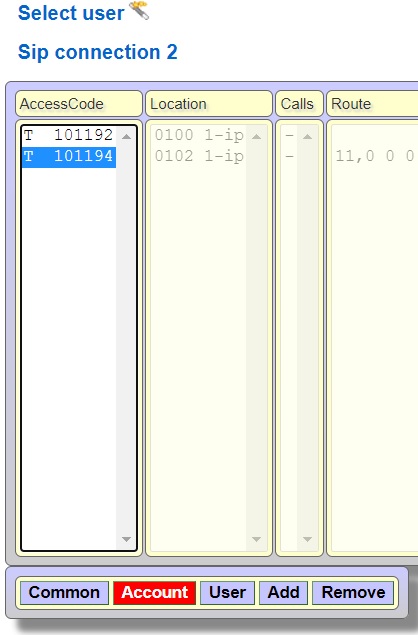

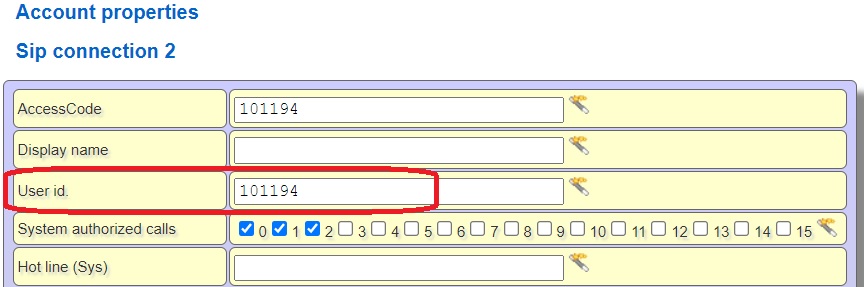

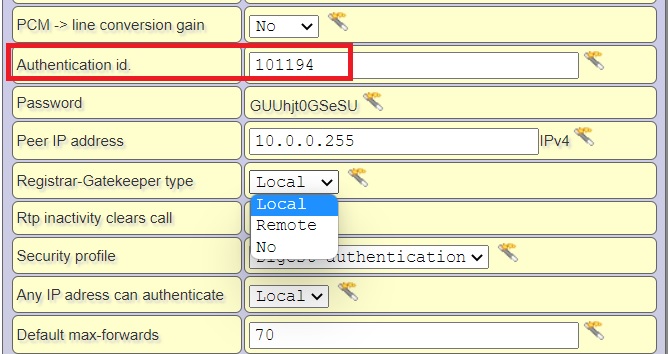

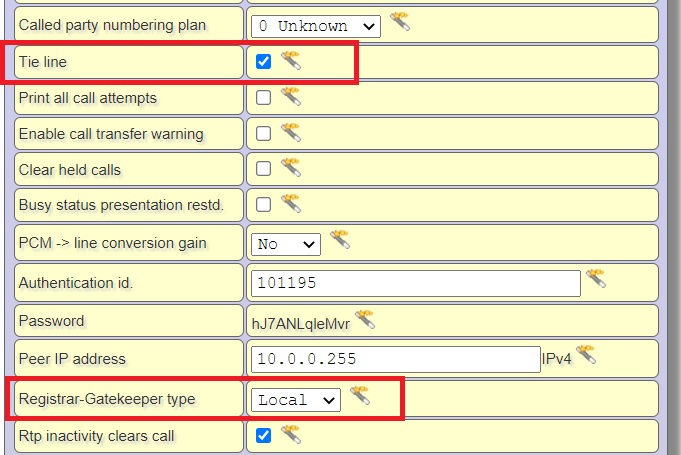

You can change the User id from the Account properties page. The user id can be up to 34 alphanumeric characters.   You can change the auth id, Auth id can have a maximum of 34 alphanumeric characters.  Select Register - Gatekeeper type Local, mark Tie Line check box.  the system automatically assigns a password, the password cannot be changed. In order to reproduce the password, select the Register / Gatekeeper type No, the new password is generated when you select the local again. Select or change Any ip adress can authenticate list box settings if necessary When No is selected; The system accepts requests from this user only from the Common features / Peer IP address. In this case, the user's IP address must be static. When Local is selected; The system accepts requests from all local (LAN) IP addresses of this user if the authentication process is successful. In this case, this user's IP address does not need to be static. When All is selected; The system accepts requests from all IP addresses of this user (within or outside the LAN) if the authentication process is successful. In this case, this user's IP address does not need to be static.

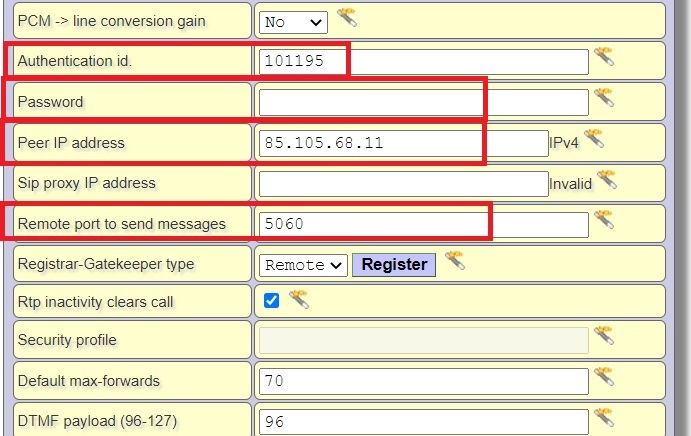

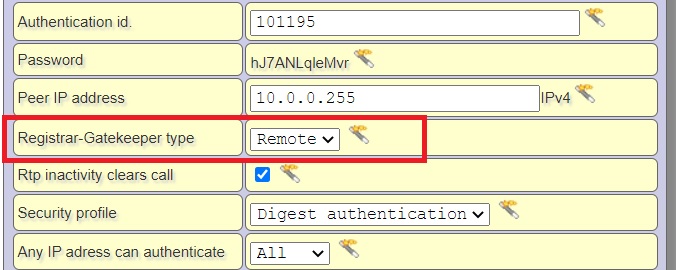

Select Register - Gatekeeper type Remote and mark Tie Line check box. Click OK button  Again go to the common properties page of the sip port you added. Enter the user id, auth id and password given by the system you will register  You can change the User id from the Account properties page. The user id can be up to 34 alphanumeric characters. If the registration is successful, the SIP users page shows the Ra mark

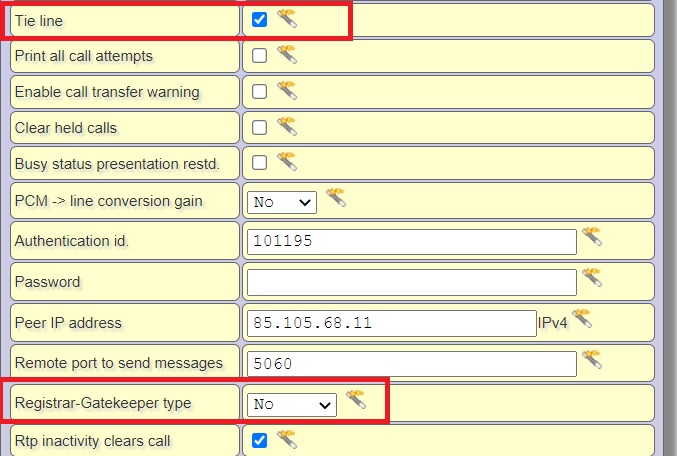

Select Register - Gatekeeper type No and mark Tie Line check box. Click OK button

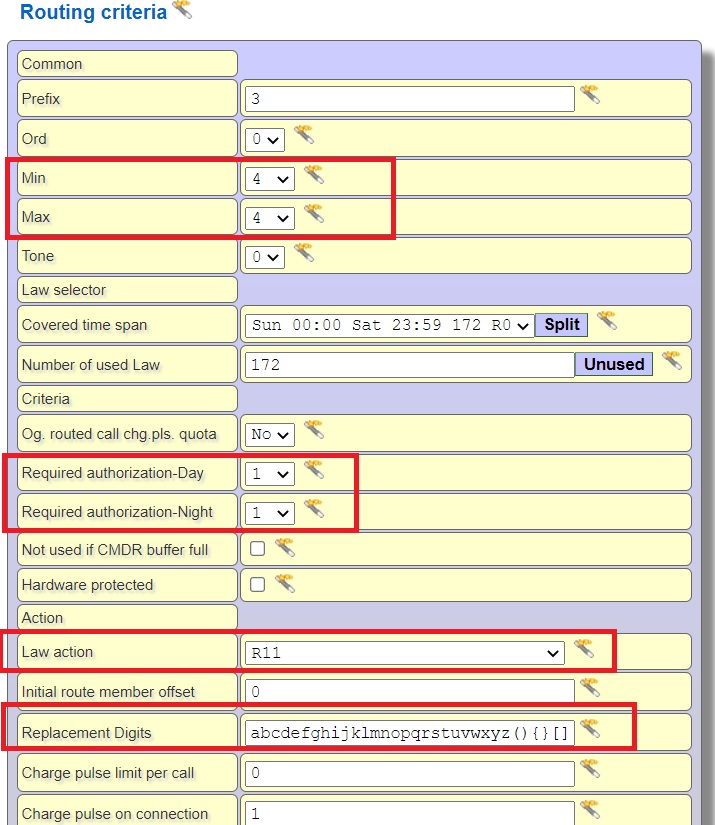

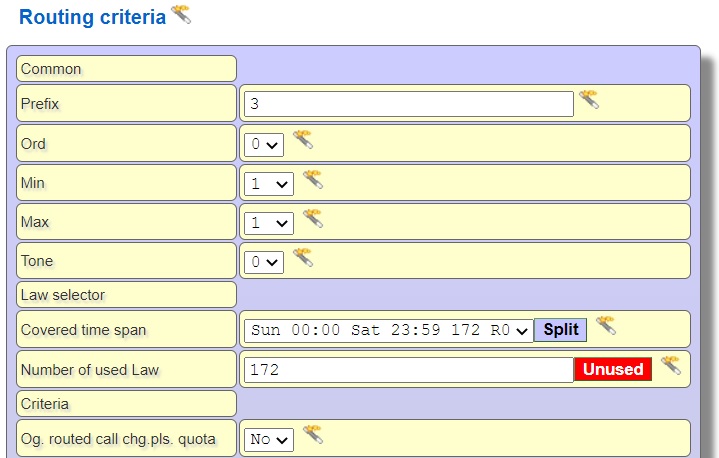

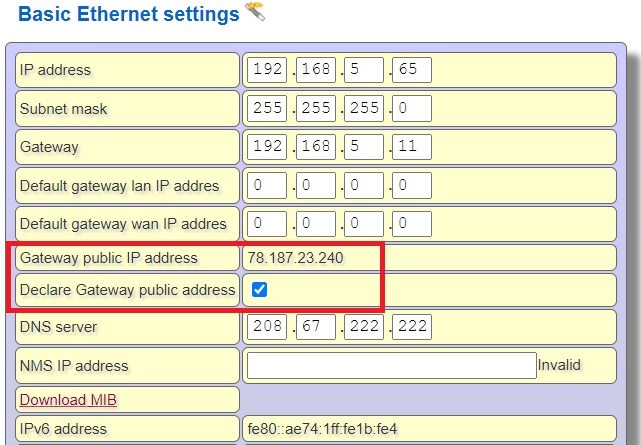

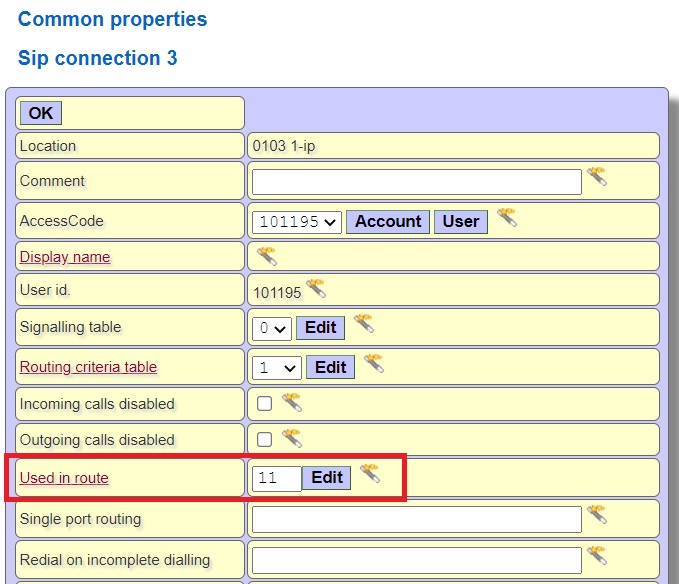

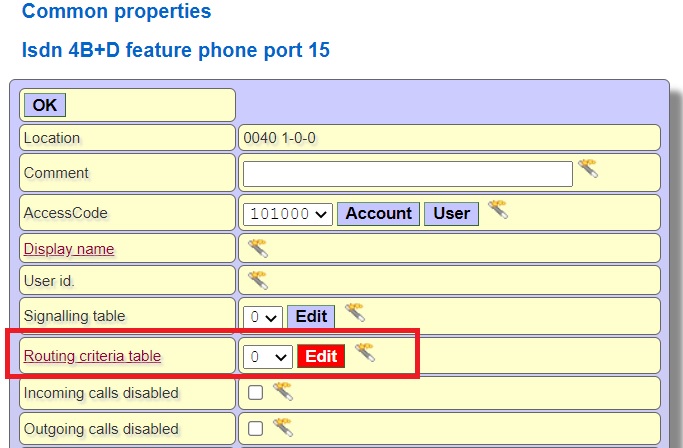

if other system (destination sip trunk) is on WAN The exchange should use the external IP address instead of its internal IP address. For this mark Declare Gateway public address in the Ethernet / Basic settings page. If the exchange has received the external ip address, it will show the ip address on the Gateway public IP address  Call from sip trunk (Tie line marked) line Give a route for sip trunk (like route 11) from common properties page  To call this sip trunk line, select the prefix number from the routing criteria table used by the subscribers and create a rule  Select Prefix and click Edit button  Click Unused button to give a Number of used Law  Arrange Min/Max for called party number (assume that if called party number start with 3xxx (4 digit)), select 1 from Required authorization-Day/Required authorization-Night list box, select law action R11 (assume that sip trunk is using route 11), and keep replacement digits original (abc...)  |
