Before mounting, make the subrack ready with:
BUT WITHOUT
- SGS and SDT modules installed (otherwise, the subrack could be heavy, which results in mounting difficult)
- VAC mains plus connected to the SSS power supply module
 | Stillink 3200 subrack weights approximately 10kgs with SSS module and the main CPU boards (without SGS and SDT modules) |
 | Fully configured Stillink 3200 subrack weights approximately 15kgs |

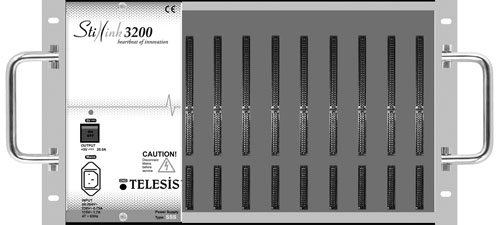

Front view of the Stillink 3200 subrack, which is ready for 19-inch rack mounting
Back view of the Stillink 3200 subrack, which is ready for 19-inch rack mounting
