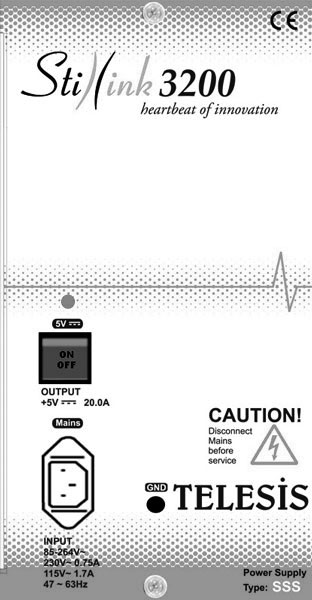

The SSS module is a high quality power supply module for the Stillink 3200.
Input and output power specifications of the SSS power supply module are:
Input:
- 85 - 264 VAC (0.75 Amp at 230 VAC, 1.7 Amp at 115 VAC)
- 47 - 63 Hz
Output:
Some other main features of the SSS module are:
- Built-in active PFC function
- Short circuit / Overload / Over voltage protections
- Cooling by free air convection
- 100% full load burn-in tested
- Fixed switching frequency at PFC:67KHz PWM:134KHz
- Overload protection: Constant current limiting, recovers automatically after fault condition is removed
- Overvoltage protection: Shut down o/p voltage, re-power on to recover
- MTBF 224300 hours MIL-HDBK -217F (25 )
Before attaching the 85 - 264 VAC mains plug to the SSS power supply module, be sure that:
- +5 VDC output switch is set to OFF (or 0) position.
- Protective and independent ground is connected to it.
- Power and ground cables from the module are attached to the relevant connectors at the back of the Stillink 3200 subrack.
- All boards and modules are tight in their locations. All screws are tightened.
- All unused slots are covered with empty cover plates.
