| USB 5VDC @ 1Amp | Stillink x100 power adapter connects here. Be aware that AC-DC power adapter is specially designed for the Stillink x100. Never use any adapter or power converter except the one supplied by Telesis. Otherwise, you may damage your system. |
| Power | ON/OFF switch |
| Status | Status led. Off: No operation, Blinks: Normal operation mode, Fast blinks: Service mode |
| Ethernet | 10-100_BaseT_Ethernet Interface for VoIP and service |
| Port 0 | 120ohm E1 interface (first E1). Click here for pin diagram. |
| Port 1 | 120ohm E1 interface (second E1). Click here for pin diagram. |
| Service | Service button. Mainly used for starting the system in service mode. Click here for details. |
| Parameter | Parameter button. Mainly used for restarting the system with factory defaults, i.e. factory reset. Click here for details. |

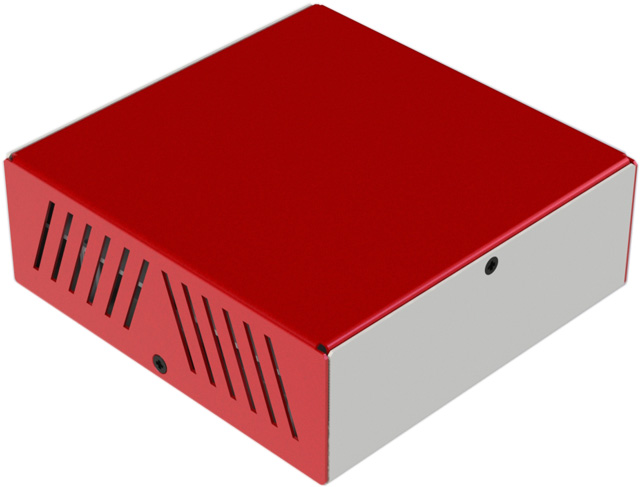

Views
 | This product does not have serviceable components. Do not open it. |

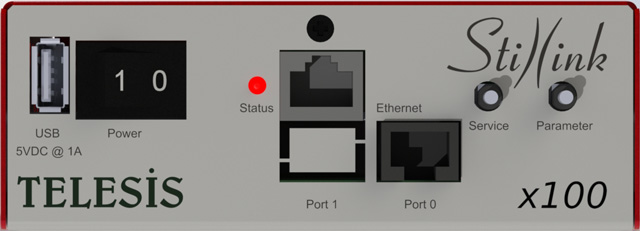

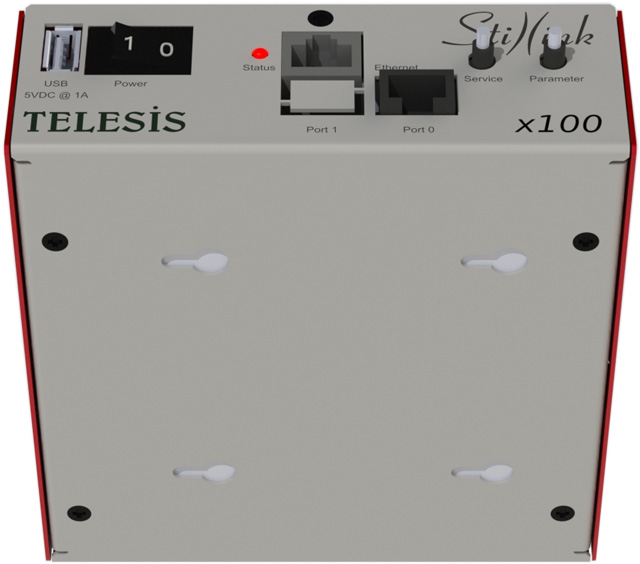

Front, Bottom and Side views of the Stillink x100 with a single E1 interface (2.STLX1001E1)

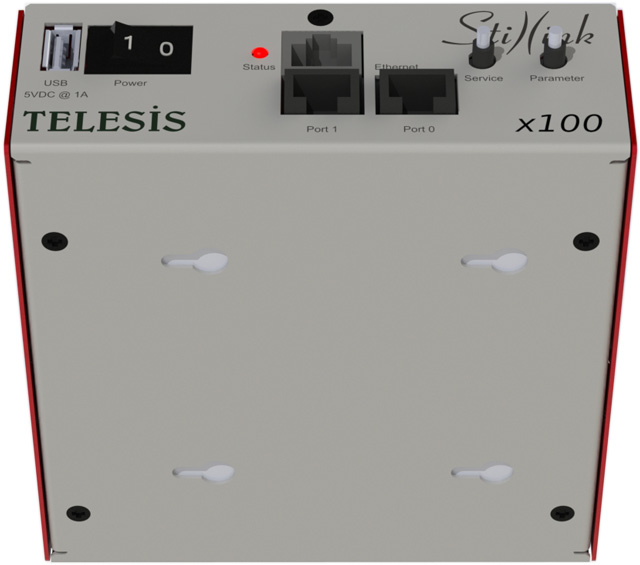

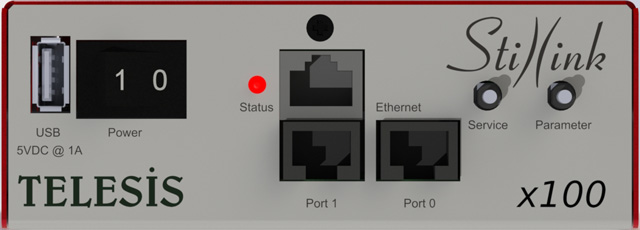

Front, Bottom and Side views of the Stillink x100 with dual E1 interfaces (2.STLX1002E1)
